전륜 제동 장치

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV

Illustration Number: 04101

부품 찾기

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV - 전륜 제동 장치 (04101)

부품 분해도를 보고 원하는 부품을 찾으세요.:
  • 다이어그램을 드래그하여 위치를 변경할 수 있습니다.
  • 다이어그램을 스크롤하거나 핀치하거나 and buttons
  • 부품 다이어그램에서 핫스팟 1을 클릭하여 표에서 부품을 찾을 수 있습니다.
부품 키
IN
재고 있음
AS
곧 도착
TO
주문하기
PE
문의하세요

사진 부품 번호 설명 가격 (개당) 재고
670156762 프론트 브레이크 디스크 £130.69 재고 있음
사진 부품 번호 설명 가격 (개당) 재고
675001537 SCREW £2.12 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001495 SCREW £4.09 주문하기
사진 부품 번호 설명 가격 (개당) 재고
670214625 좌측 전면 캘리퍼 어셈블리 £530.32 주문하기
670214626 좌측 전면 캘리퍼 어셈블리 £512.35 주문하기
670214627 좌측 전면 캘리퍼 어셈블리 £513.83 주문하기
...and 25 more part variants. See table on right for more details.
사진 부품 번호 설명 가격 (개당) 재고
673015812 프론트 패드 키트 £225.84 주문하기
673016578 프론트 패드 키트 £225.83 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001587 좌측 전면 캘리퍼 리지드 파이프 £4.67 주문하기
675001588 우측 전면 캘리퍼 리지드 파이프 £5.09 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001676 왼쪽 앞쪽 브래킷 £5.23 주문하기
675001677 우측 전면 브래킷 £5.23 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675000898 SCREW £3.94 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001063 NUT £1.10 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001738 좌측 프론트 브레이크 디스크 가드 £18.44 주문하기
675001739 우측 전면 브레이크 디스크 가드 £18.44 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001032 SCREW £0.92 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675000276 스프링 플레이트 £0.83 재고 있음
사진 부품 번호 설명 가격 (개당) 재고
675001877 플렉시블 파이프-프런트 캘리퍼 £6.82 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001740 왼쪽 측면 브래킷 £2.41 주문하기
675001741 오른쪽 측면 브래킷 £2.66 주문하기
사진 부품 번호 설명 가격 (개당) 재고
673011103 블리더 나사 및 플러그 £44.69 주문하기
사진 부품 번호 설명 가격 (개당) 재고
675001897 RIVET £1.47 주문하기
사진 부품 번호 설명 가격 (개당) 재고
673011104 SPRING £65.07 주문하기
사진 부품 번호 설명 가격 (개당) 재고
673011102 LH 브래킷 및 나사 £28.86 주문하기
673011101 RH 브래킷 및 나사 £28.86 주문하기
사진 부품 번호 설명 가격 (개당) 재고
673011100 개스킷 키트 £56.52 주문하기
모두 보기

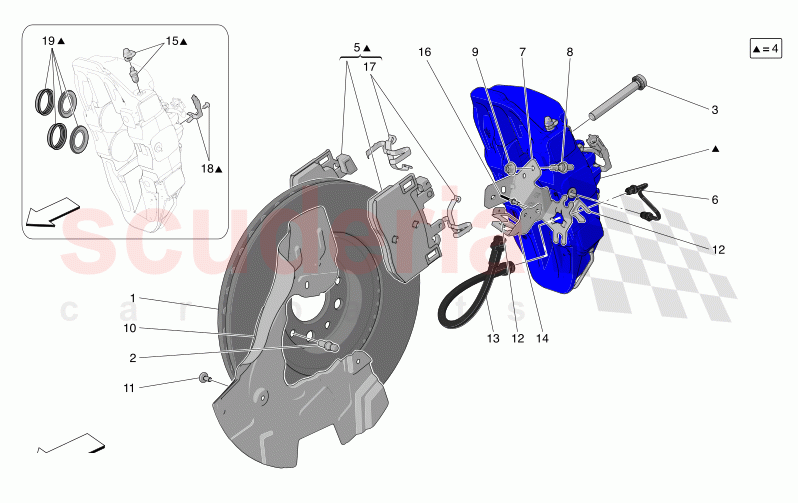

BRAKING DEVICES ON FRONT WHEELS of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV 다이어그램 탭하여 확대
# 부품 세부 정보 가격
(각)		 수량
다이어그램		 에 추가
장바구니
1 670156762
프론트 브레이크 디스크
재고 있음 		£130.69 (27.8% off) 2
2 675001537
SCREW 		£2.12 (5.8% off) 2
3 675001495
SCREW 		£4.09 (3.8% off) 4
4 670214625
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028092; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£530.32 (3.8% off) 1
4 670214626
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2029164; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£512.35 (3.7% off) 1
4 670214627
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028024; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£513.83 (3.8% off) 1
4 670214628
좌측 전면 캘리퍼 어셈블리
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£530.32 (3.8% off) 1
4 670214629
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2032179; Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£513.83 (3.8% off) 1
4 670308610
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028093 - 2034319; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£479.81 (3.8% off) 1
4 670308611
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2029165 - 2034469; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		- 1 Enquire
4 670308612
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028025 - 2034134; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£496.38 (3.8% off) 1
4 670214635
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028092; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£530.32 (3.8% off) 1
4 670214636
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2029164; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£512.35 (3.7% off) 1
4 670214637
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028024; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£530.32 (3.8% off) 1
4 670214638
우측 전면 캘리퍼 어셈블리
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£530.32 (3.8% off) 1
4 670214639
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2032179; Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£530.32 (3.8% off) 1
4 670308620
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028093 - 2034319; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£479.81 (3.8% off) 1
4 670308621
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2029165 - 2034469; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£495.17 (3.9% off) 1
4 670308622
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028025 - 2034134; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£496.38 (3.8% off) 1
4 670214629
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 2033535; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		£513.83 (3.8% off) 1
4 670311709
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034135 - 99999999; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£523.43 (3.8% off) 1
4 670311704
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034320 - 99999999; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£418.75 (3.7% off) 1
4 670311708
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034470 - 99999999; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£523.43 (3.8% off) 1
4 670308614
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2033536 - 2034472; Available with: YELLOW BRAKE CALIPERS ; EU AU US UK JP JRH IN KO N0 N8; 		- 1 Enquire
4 670311710
좌측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034473 - 99999999; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		£523.43 (3.8% off) 1
4 670214639
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 2033535; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		£530.32 (3.8% off) 1
4 670311715
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034135 - 99999999; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£523.43 (3.8% off) 1
4 670311705
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034320 - 99999999; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£432.17 (3.7% off) 1
4 670311714
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034470 - 99999999; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		£523.43 (3.8% off) 1
4 670308624
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2033536 - 2034472; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		- 1 Enquire
4 670311718
우측 전면 캘리퍼 어셈블리
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034473 - 99999999; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		£523.43 (3.8% off) 1
5 673015812
프론트 패드 키트
PLEASE REFER TO TSO BULLETINS MAS004408 BEFORE ORDERING THE CORRECT BRAKE PADS KIT; EU AU UK JP JRH IN KO N0 N8; 		£225.84 (27.8% off) 1
5 673016578
프론트 패드 키트
PLEASE REFER TO TSO BULLETINS MAS004408 BEFORE ORDERING THE CORRECT BRAKE PADS KIT; EU AU UK JP JRH IN KO N0 N8; 		£225.83 (27.8% off) 1
6 675001587
좌측 전면 캘리퍼 리지드 파이프
Not available with: AWD DISCONNECT; 		£4.67 (12.7% off) 1
6 675001588
우측 전면 캘리퍼 리지드 파이프
Not available with: AWD DISCONNECT; 		£5.09 (13% off) 1
7 675001676
왼쪽 앞쪽 브래킷
Not available with: AWD DISCONNECT; 		£5.23 (4% off) 1
7 675001677
우측 전면 브래킷
Not available with: AWD DISCONNECT; 		£5.23 (4% off) 1
8 675000898
SCREW 		£3.94 (3.9% off) 4
9 675001063
NUT 		£1.10 (4.3% off) 4
10 675001738
좌측 프론트 브레이크 디스크 가드
Not available with: AWD DISCONNECT; 		£18.44 (4.9% off) 1
10 675001739
우측 전면 브레이크 디스크 가드
Not available with: AWD DISCONNECT; 		£18.44 (4.9% off) 1
11 675001032
SCREW 		£0.92 (8% off) 6
12 675000276
스프링 플레이트
재고 있음 		£0.83 (2.4% off) 4
13 675001877
플렉시블 파이프-프런트 캘리퍼 		£6.82 (13.1% off) 2
14 675001740
왼쪽 측면 브래킷 		£2.41 (3.6% off) 1
14 675001741
오른쪽 측면 브래킷 		£2.66 (5% off) 1
15 673011103
블리더 나사 및 플러그 		£44.69 (3.9% off) 4
16 675001897
RIVET 		£1.47 (5.2% off) 4
17 673011104
SPRING 		£65.07 (12.5% off) 4
18 673011102
LH 브래킷 및 나사 		£28.86 (3.8% off) 1
18 673011101
RH 브래킷 및 나사 		£28.86 (3.8% off) 1
19 673011100
개스킷 키트 		£56.52 (3.7% off) 1
