POWER STEERING of Lamborghini Lamborghini Murcielago

모두 보기

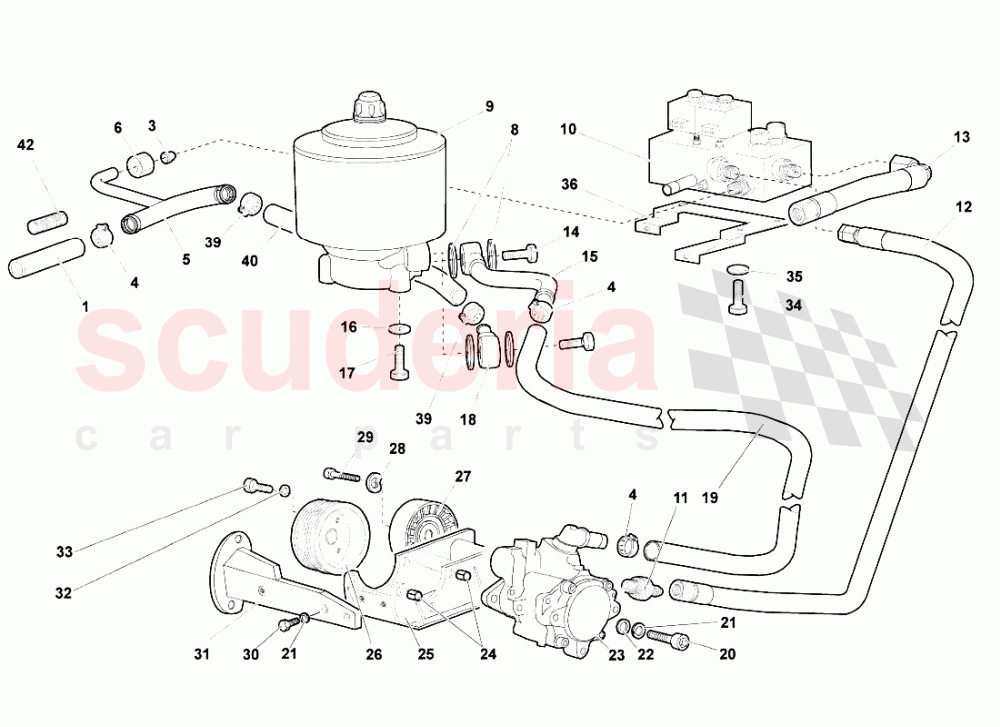

Lamborghini Murcielago - 파워 스티어링

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

모두 보기

다이어그램 탭하여 확대

0 부품 (£0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램
001	410422890	PIPE	410422890 PIPE	£16.23 MSRP: ~~18.33~~ (11.5% off)	1
003	410616335	BUSH	410616335 BUSH	£4.89 MSRP: ~~5.52~~ (11.4% off)	1
004	N10418001	CLAMP 재고 있음	N10418001 CLAMP 재고 있음	£0.70 MSRP: ~~0.79~~ (11.4% off)	3
005	410422237A	PIPE	410422237A PIPE	£178.78 MSRP: ~~187.37~~ (4.6% off)	1
006	4036493	NUT	4036493 NUT	£4.34 MSRP: ~~5.31~~ (18.3% off)	1
008	400422383A	WASHER	400422383A WASHER	£5.39 MSRP: ~~6.08~~ (11.3% off)	4
009	410422373	TANK	410422373 TANK	£1,031.30 MSRP: ~~1,164.02~~ (11.4% off)	1

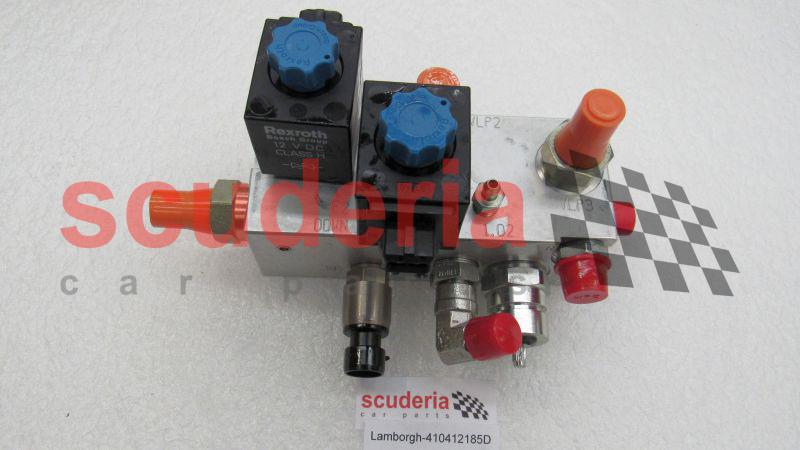

010	410412185D	잭킹 시스템 제어 재고 있음	410412185D 잭킹 시스템 제어 재고 있음	£5,933.15 MSRP: ~~6,218.32~~ (4.6% off)	1
011	410422279	CONNECTOR	410422279 CONNECTOR	£62.79 MSRP: ~~70.87~~ (11.4% off)	1
012	410422893	HOSE	410422893 HOSE	£672.17 MSRP: ~~758.66~~ (11.4% off)	1
013	410422471	HOSE	410422471 HOSE	£102.23 MSRP: ~~115.39~~ (11.4% off)	1
014	400422269	구멍이있는 나사	400422269 구멍이있는 나사	£36.64 MSRP: ~~41.36~~ (11.4% off)	1
015	410422859B	CONNECTOR	410422859B CONNECTOR	£88.66 MSRP: ~~100.07~~ (11.4% off)	1
016	8410820	WASHER	8410820 WASHER	£0.13	3
017	N01029315	나사(VIN 5LA01545부터)	N01029315 나사(VIN 5LA01545부터)	£0.82 MSRP: ~~0.92~~ (10.9% off)	3
018	400422859A	CONNECTOR	400422859A CONNECTOR	£84.87 MSRP: ~~95.78~~ (11.4% off)	1
019	410422891	PIPE	410422891 PIPE	£40.39 MSRP: ~~45.60~~ (11.4% off)	1
020	8700810	SCREW	8700810 SCREW	£0.43 MSRP: ~~0.46~~ (6.5% off)	6
021	WHT001514	WASHER 재고 있음	WHT001514 WASHER 재고 있음	£16.79 MSRP: ~~18.95~~ (11.4% off)	6
022	WHT002961	WASHER 재고 있음	WHT002961 WASHER 재고 있음	£0.28 MSRP: ~~0.30~~ (6.7% off)	6
023	410145155	오일 펌프	410145155 오일 펌프	£5,133.92 MSRP: ~~5,794.58~~ (11.4% off)	1
024	410145219	BUSH	410145219 BUSH	£21.30 MSRP: ~~24.05~~ (11.4% off)	2
025	40013247	BRACKET	40013247 BRACKET	£1,429.38 MSRP: ~~1,613.30~~ (11.4% off)	1
026	410145255	PULLEY	410145255 PULLEY	£332.92 MSRP: ~~375.76~~ (11.4% off)	1
027	7M109564	PULLEY	7M109564 PULLEY	£5,730.99 MSRP: ~~6,468.48~~ (11.4% off)	1
028	WHT000768	WASHER 재고 있음	WHT000768 WASHER 재고 있음	£1.32 MSRP: ~~1.49~~ (11.4% off)	1
029	8701011	SCREW	8701011 SCREW	£0.93 MSRP: ~~1.13~~ (17.7% off)	1
030	8100821	SCREW	8100821 SCREW	£0.85 MSRP: ~~0.90~~ (5.6% off)	2
031	40009516	타이 로드	40009516 타이 로드	£1,004.17 MSRP: ~~1,133.39~~ (11.4% off)	1
032	WHT001514	WASHER 재고 있음	WHT001514 WASHER 재고 있음	£16.79 MSRP: ~~18.95~~ (11.4% off)	3
033	8100812	SCREW	8100812 SCREW	£0.24 MSRP: ~~0.30~~ (20% off)	3
034	8100613	SCREW	8100613 SCREW	£0.18 MSRP: ~~0.22~~ (18.2% off)	3
035	WHT002961	WASHER 재고 있음	WHT002961 WASHER 재고 있음	£0.28 MSRP: ~~0.30~~ (6.7% off)	3
036	410616143	BRACKET	410616143 BRACKET	£39.49 MSRP: ~~44.57~~ (11.4% off)	1
039	N10418001	CLAMP 재고 있음	N10418001 CLAMP 재고 있음	£0.70 MSRP: ~~0.79~~ (11.4% off)	2
040	413422898	PIPE	413422898 PIPE	£26.87 MSRP: ~~30.33~~ (11.4% off)	1
042	410201212	SPRIMG	410201212 SPRIMG	£27.20 MSRP: ~~30.69~~ (11.4% off)	1
